Bearings are mechanical components that serve a crucial role in reducing friction and facilitating smooth motion between parts. They’re found in a wide variety of applications, from skateboards to automotive engines, and even in industrial machinery.

There are several different types of bearings, each with unique properties suited for specific uses. In this article, we’ll explore some of the most common types, such as ball bearings, roller bearings, and plain bearings, and discuss how they function and where they’re typically applied.

Understanding the various types of bearings is essential when selecting the perfect component for any project. Knowing their strengths, applications, and limitations can lead to optimal performance and longer-lasting components.

Fundamental Concepts

Ball Bearings

Ball Bearings examples

Ball bearings are a type of rolling element bearing that uses balls to maintain the separation between the bearing races. They can support both radial and axial loads, and have a low frictional resistance. Ball bearings come in various designs and sizes, such as:

  • Single-row deep groove ball bearings
  • Angular contact ball bearings
  • Self-aligning ball bearings

Roller Bearings

Roller-Bearings

Roller bearings, on the other hand, utilize cylindrical or tapered rollers as rolling elements. These bearing types are better suited for higher loads compared to ball bearings. They can be classified into various subtypes, including:

  • Cylindrical roller bearings
  • Tapered roller bearings
  • Spherical roller bearings
  • Needle roller bearings

Mounted Bearings

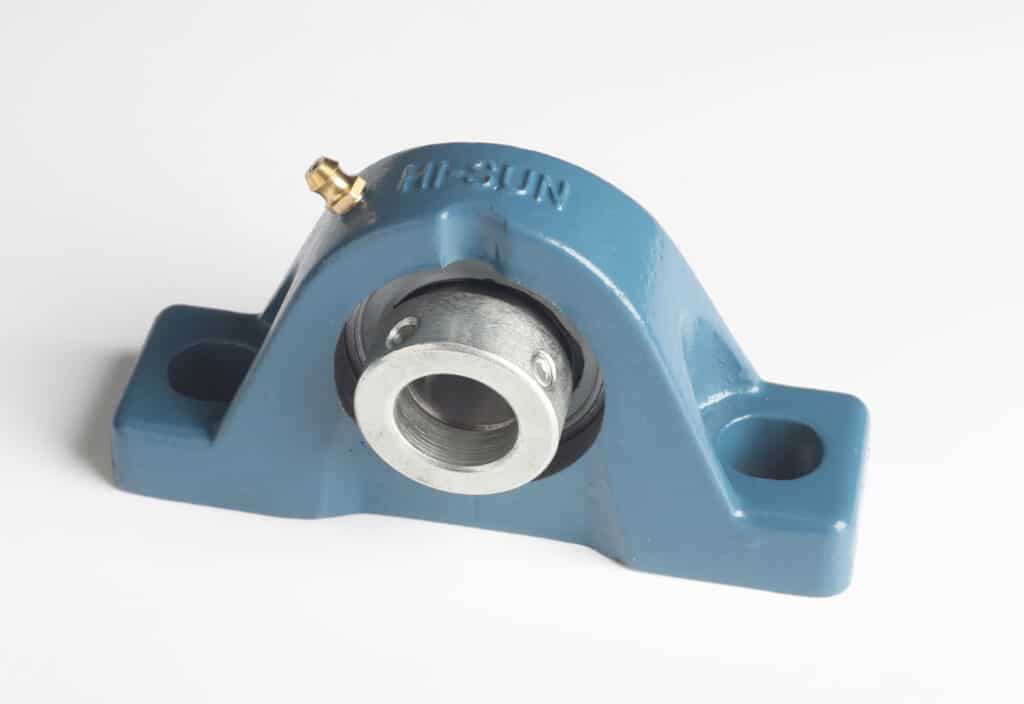

Mounted Bearings

Mounted bearings are bearings that come pre-assembled in a housing or mounting unit. They can incorporate ball or roller bearings and are designed for specific applications, such as conveyor systems, agricultural machinery, and industrial equipment. This category includes:

  • Pillow block bearings
  • Flanged bearings
  • Take-up bearings
  • Cartridge bearings

Specific Bearing Types

Deep Groove Ball Bearings

These bearings are versatile and can handle both radial and axial loads. They have a simple design with low maintenance requirements, making them a popular choice for various applications. Deep groove ball bearings are commonly found in electric motors, gearboxes, and pumps.

Tapered Roller Bearings

Designed to handle large radial and thrust loads, tapered roller bearings are commonly used in car hubs, gearboxes, and large industrial machinery. The tapered shape of the rollers allows for better load distribution, resulting in improved wear resistance and longer service life.

Spherical Roller Bearings

Spherical roller bearings are ideal for applications that involve misalignment or shaft deflection. The spherical shape of the rollers allows them to adjust to varying load directions, making them suitable for heavy-duty applications in the mining, construction, and paper industries.

Cylindrical Roller Bearings

With their ability to accommodate high radial loads, cylindrical roller bearings are suitable for applications with high-speed rotation. They have a unique design with the rollers separated by flanges, which helps minimize friction and heat generation. Common applications include electric motors, automotive drivetrains, and machine tool spindles.

Specialized Bearings

Magnetic Bearings

Magnetic bearings use magnetic forces to suspend rotating components without physical contact. This makes them highly efficient and reduces friction, wear, and the need for lubrication. They also exhibit significantly lower vibration levels, which enable high-speed operation, improved accuracy, and longevity.

Super Precision Bearings

Super precision bearings are designed to provide extremely high accuracy and rotational speed. These bearings are commonly used in applications like machine tool spindles, where stability, precision, and low heat generation are crucial. They come in various types, each incorporating features specifically designed for different operating conditions.

Linear Bearings

Linear bearings are designed to handle motion in a straight line, as opposed to radial or rotary motion. They use a linear contact pad, ball, or roller system to provide low friction, high stiffness, and smooth motion. Applications include rail guides, machine slides, and linear stages. This type of bearing provides an efficient and precise solution to linear motion requirements.

Bearing Materials

Steel Bearings

Steel bearings are the most common type of bearing due to their durability and affordability. They are typically made from through-hardened steel, which provides excellent wear resistance. High-quality steel bearings often use materials like chrome steel or stainless steel.

Ceramic Bearings

Ceramic bearings offer improved performance due to their lower density and thermal expansion. They can reduce friction and increase energy efficiency. Examples of ceramic materials used in bearings include silicon nitride and zirconia.

Plastic Bearings

Plastic bearings are lightweight, resistant to corrosion, and provide good electrical insulation. They have their limitations as they may not withstand high temperatures or heavy loads, but they can be ideal in certain applications. Common materials for plastic bearings include PEEK, PTFE, or nylon.

Bearing Maintenance

Lubrication

Proper lubrication is essential for the longevity of bearings. It reduces friction and wear, preventing overheating and damage. Make sure to use the correct type and amount of lubricant for your specific bearing application.

Monitoring

Regular monitoring of bearing performance can help detect any issues early. Keep an eye on factors like temperature, vibration, and noise. Using tools like infrared thermometers, vibration analyzers, and listening devices can aid in effective monitoring.

Inspection

Periodic inspections of bearings help in identifying signs of wear or damage. Make sure to follow the manufacturer’s recommendations for inspection intervals. Should any abnormalities be detected, appropriate corrective actions must be taken right away.

Replacement

Bearings have a finite service life, and timely replacement is crucial to avoid failure. Use the manufacturer’s guidelines to determine the optimal replacement schedule. Always use high-quality, genuine bearings sourced from reliable suppliers when replacements are needed.

Bearing Applications

Bearings are essential components in various industries, enabling smooth operation and minimizing friction in applications that require rotational or linear motion. In this section, we’ll discuss some key applications of bearings in different industries, such as automotive, aerospace, and medical equipment.

Automotive

Bearings play a crucial role in the automotive industry, where they provide smooth operation in components like engines, transmissions, and wheel hubs. High-quality bearings ensure longevity, reduce noise, and enhance fuel efficiency. In electric vehicles, bearings also contribute to improving the performance and lifespan of electric motors.

Aerospace

In the aerospace industry, bearings are vital for the operation of aircraft engines, landing gears, and flight control systems. They help handle extreme loads, high speeds, and demanding operating conditions. Aerospace bearings typically require sophisticated materials and precise manufacturing processes, ensuring safety, reliability, and compliance with strict industry standards.

Medical Equipment

Bearings play a crucial role in various types of medical equipment, such as surgical tools, diagnostic equipment, and medical imaging systems. In these applications, bearings enable precise movements and reduce vibrations, ensuring accurate and smooth operation. Medical-grade bearings are designed to meet stringent hygiene requirements and withstand harsh sterilization processes, making them an essential component in healthcare settings.
