Types of Mechanical Couplings

Types of Mechanical Couplings

Mechanical couplings play a crucial role in connecting and transmitting power between rotating shafts in various applications. These devices not only facilitate motion transfer but also help in absorbing misalignments and reducing system vibrations. By understanding the different types of couplings available, engineers can effectively choose the most suitable one for their specific needs.

Some popular types of mechanical couplings include jaw couplings, gear couplings, and flexible couplings, each with their unique benefits and limitations. For example, jaw couplings are a great choice for applications where high accuracy and zero backlash are not required, such as connecting a motor shaft to a conveyor drive roller as seen here.

Selecting the appropriate coupling for your application can greatly impact the performance, reliability, and maintenance requirements of your system. To ensure efficient functioning, it’s essential to consider factors such as torque, speed, alignment accuracy, and environmental conditions when deciding on the most suitable type of coupling.

Types of Mechanical Coupling

Rigid Couplings

Rigid couplings are designed for applications that require precise alignment between two shafts. These couplings do not allow for any misalignment or axial movement between the connected shafts. Examples of rigid coupling types include sleeve, flange, and clamp couplings. Sleeve couplings connect the shafts using a metal tube, while flange couplings utilize a metal plate with bolt holes. Clamp couplings, on the other hand, employ clamping force to secure the coupling to the shafts.

Flexible Couplings

Flexible couplings, as the name suggests, accommodate some degree of misalignment and axial movement between connected shafts. They are typically used in applications where shaft misalignment is expected or unavoidable. Some common types of flexible couplings are:

  • Jaw couplings: These use an elastomeric element called a “spider” to compensate for misalignment and transmit torque.
  • Gear couplings: Utilizing interlocking gear teeth, these couplings accommodate angular and parallel misalignment while transferring torque efficiently.
  • Disc couplings: A disc coupling is a high-performance motion control coupling designed to transmit torque while handling shaft misalignment. It combines flexibility with torsional strength under high torque loads.

By understanding the differences between rigid and flexible couplings, you can make informed decisions when selecting the appropriate type for specific applications, ensuring optimal performance and longer service life.

Rigid Coupling Variants

Flange Couplings

Flange couplings are a popular choice for connecting shafts with minimal misalignment. They consist of two flanges, one on each shaft, that are connected by bolts. This design allows for easy assembly and disassembly, making maintenance straightforward and efficient.

Sleeve or Muff Couplings

Sleeve or muff couplings are another option for joining shafts with little to no misalignment. These couplings feature a cylindrical shape that slides over both shaft ends and is secured with keys or set screws. Sleeve couplings offer simple installation and are known for their durability and strength.

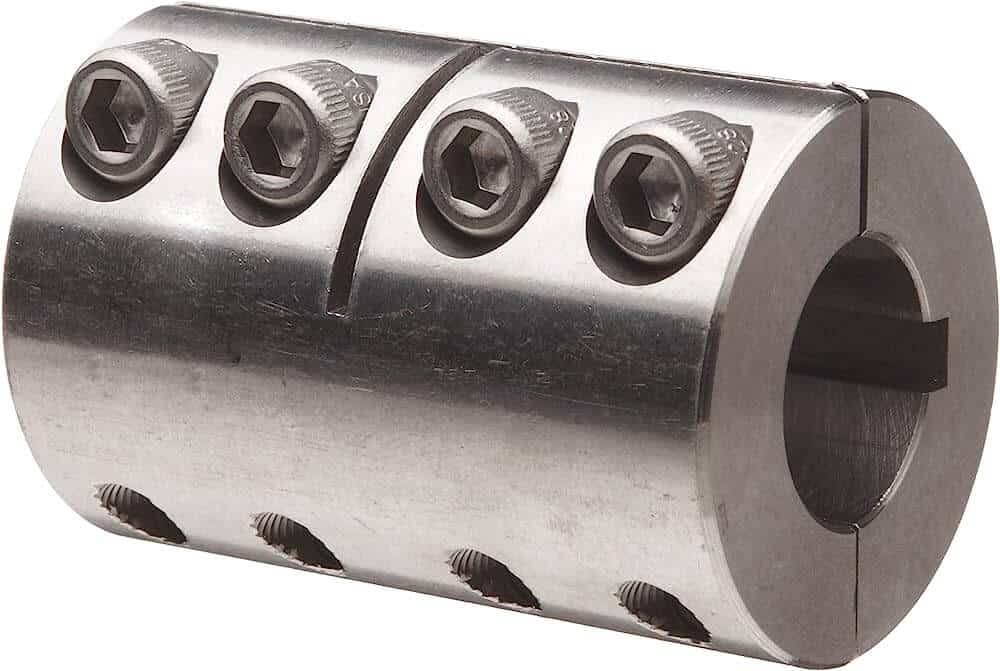

Clamping Couplings

Clamping couplings provide a reliable connection between shafts while offering benefits like easy installation and adjustability. They come in various designs such as one-piece clamp couplings, which are C-shaped devices with a split that is closed with tightening screws, and two-piece clamps that are split axially into two pieces, each of which is closed onto the shaft with tightening screws. These couplings offer a solid connection without the need for extra machining or keyways.

Flexible Coupling Variants

Gear Couplings

Gear couplings are designed with interlocking gears that transmit torque between two shafts. This design permits greater misalignment tolerance, reducing stress on connected equipment. Lubrication is essential for gear couplings to minimize wear and maintain efficient operation.

Chain Couplings

Chain couplings utilize a double-strand roller chain and two sprockets to connect equipment shafts. They offer a cost-effective solution with notable torque transmission capabilities. Proper tensioning and lubrication are critical for chain coupling longevity and performance.

Elastomeric Couplings

Elastomeric couplings use an elastic element, often made of rubber or urethane, to accommodate misalignment and absorb vibration. This type of coupling is beneficial in applications that require shock absorption and noise reduction. Periodic inspections for wear are important to ensure continued reliability.

Applications and Selection Factors

Torque Transmission

When selecting a coupling, it’s important to consider the torque transmission capability. Different couplings have varying levels of torque capacity, so you’ll need to choose one that matches your application requirements. For example, gear couplings are known for handling high torque loads, while flexible elastomeric couplings are better suited for lower torque applications.

Misalignment Compensation

Another critical factor to consider is the coupling’s ability to compensate for misalignment. Shaft misalignment can result in increased wear, vibrations, and even premature failure. Some types of couplings, like flexible disc couplings, are excellent at compensating for various kinds of misalignments. Others like rigid couplings, can only handle very minimal misalignments.

Vibration Damping

Lastly, don’t forget about vibration damping capabilities. Prolonged vibrations can lead to damage and reduced performance over time. Some coupling types, such as elastomeric couplings, are known for their vibration damping characteristics, making them a great choice for machinery that requires smooth, vibration-free operation. Always consider the vibration damping properties of the coupling you select to ensure a longer lifespan for your equipment.

Maintenance and Failure Modes

Proper maintenance of mechanical couplings is crucial to ensure their longevity and avoid premature failures. One maintenance task is to regularly lubricate couplings, such as greasing flexible couplings. Another is to ensure parts are properly aligned, as misalignment can cause stress on the components and lead to failure.

Failure modes in mechanical couplings can vary greatly, but being aware of common issues can help prevent disasters. For example, fatigue, corrosion, and wear can cause components to weaken and eventually lead to failure. Additionally, coupling components can also fail due to installation errors or inadequate maintenance.

When facing a coupling failure, it is essential to analyze the causes and learn from them to prevent future occurrences. This may involve reassessing maintenance practices or considering the use of different coupling types, such as sealless magnetic drive pumps for improved reliability. Remaining aware of potential failure modes and keeping a friendly approach to maintenance will contribute to the performance and durability of mechanical couplings.

Conclusion

Mechanical couplings play an important role in connecting and transmitting power between various machine components. There are several types of couplings, each designed to fulfill specific requirements and applications.

Flexible couplings, such as jaw, gear, and elastomeric couplings, allow for misalignment and provide shock absorption. On the other hand, rigid couplings like flange, sleeve, and clamp couplings ensure precise alignment of shafts, while transmitting power with minimal losses.

Understanding the different types of mechanical couplings will enable engineers and designers to choose the most appropriate coupling for their specific needs, resulting in efficient and long-lasting machines.
